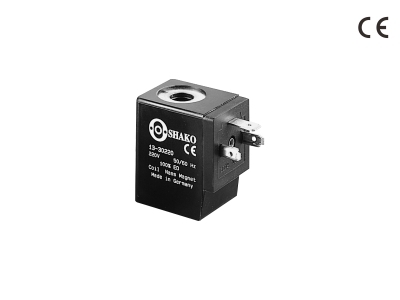

30mm 2/2 Way Coil

Chi tiết sản phẩm

For PU220A, PU220AR-03, PU225, AM325, SPU225, PE220, SPU220, SPUY220 series

• The data of power and final temperature are valid for the standard voltages 24VDC and 230VAC; the power consumption may be higher at different nominal voltages.
• Function is warranted at max. ambient temperature; max. voltage change and operating temperature.
• The data of final temperature is valid for thermoplastic valve bodies and thermoplastic encapsulated coils. The temperature will be approximately 10-20K higher if the bodies are manifold.
• This will cause a reduction of the magnetic force.
• For additional information see German standard "Specification for Electronic Devices"DIN VDE 0580 or folder 1.4.0.0.
