SUREFIRE II 1-PHASE-CONFIGURATOR SFX
Đặc điểm nổi bật
Đang được cập nhậpChi tiết sản phẩm

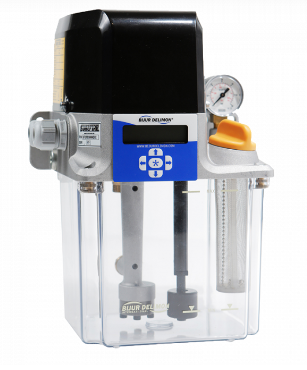

SUREFIRE II 1-PHASE-CONFIGURATOR
SKU Surefire II 1-Phase-Configurator
Model: SFX
Technical Data | |||
Output Volume – 115 VAC, 230 VAC (max.) Single Phase |
250cc/min @ 60 Hz 210cc/min @ 50 Hz |
||
Output Volume – 24 VDC (max.) | 250cc/min | ||
Output Pressure (max.) | PDI | 450 psi (31 bar) | |
SLR | 75 psi ( 5 bar) | ||
Pressure Switch Setting | PDI | Closes at 290 psi (20 bar) | |
SLR | Closes at 20 psi (1.4 bar) | ||
Lubricant Viscosity |
Standard Oil version: | 20 to 1500 cSt @ operating temperature | |
Light Oil version: | 5-40 cSt @ operating temperature | ||
Soft Greases 2 | NLGI grade 000 - NLGI grade 00 (40,000 cSt max) |
||
Reservoir Fill Screen (oil only) | 40 mesh, removable | ||
Reservoir Volume | 2 liter/ 3 liter / 6.0 liter / 12.0 liter | ||
Reservoir Material | Luran (Blue Tint) for 2, 3 and 6 liter Steel for 2, 3, 6 and 12.0 liter |
||
Motor Voltage Options | 100/115 VAC 50/60 Hz Single Phase 200/230 VAC 50/60 Hz Single Phase 24 VDC |
